◎ BT40-ER20 90° Angle Head-Compact (AHD Type)◎ Run-out:0.002 mm◎ Material:Ductile Cast Iron◎ R.P.M.:Max. 4000 RPM◎ Torque:Max. 25 Nm◎ Drilling : Max. 12 mm◎ Tapping : Max. M10◎ Gear Ratio:1:1◎ Standard Accessory:Hook Spanner, ER Wrench, ER Nut◎ Output Rot ...了解更多

AHD-BT40-A2 90度角度头



  • 描述
  • IM_EXTRA_TAB_ADD1

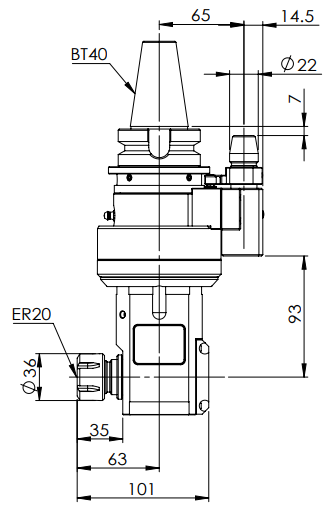

◎ BT40-ER20 90° Angle Head-Compact (AHD Type)
◎ Run-out:0.002 mm
◎ Material:Ductile Cast Iron
◎ R.P.M.:Max. 4000 RPM
◎ Torque:Max. 25 Nm
◎ Drilling : Max. 12 mm
◎ Tapping : Max. M10
◎ Gear Ratio:1:1
◎ Standard Accessory:Hook Spanner, ER Wrench, ER Nut
◎ Output Rotation:Reverse to Input Rotation

◎ Compact body design is the best tool for internal machining application.
