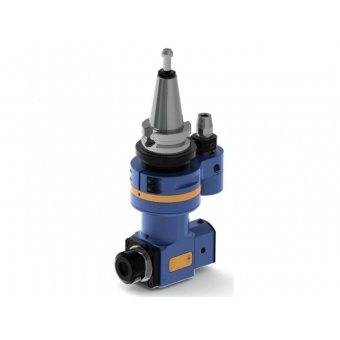

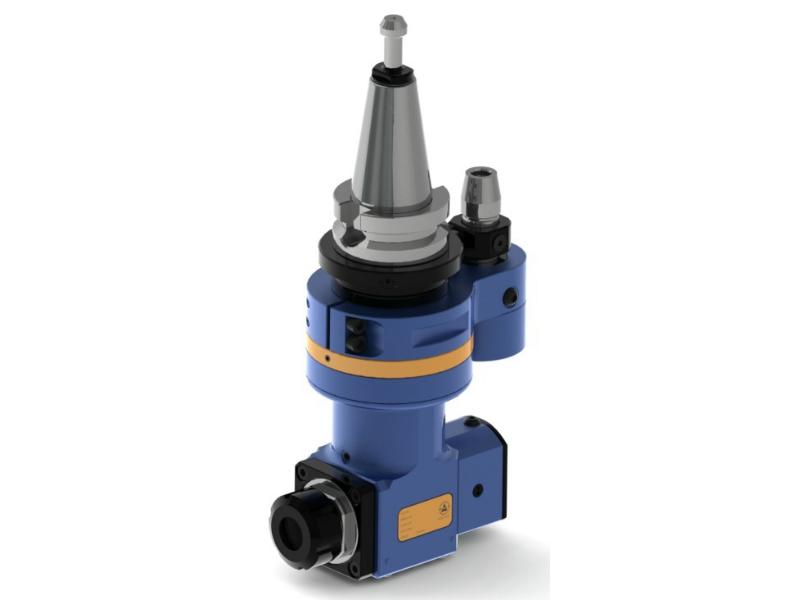

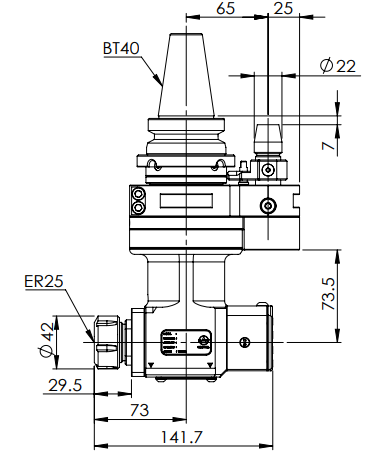

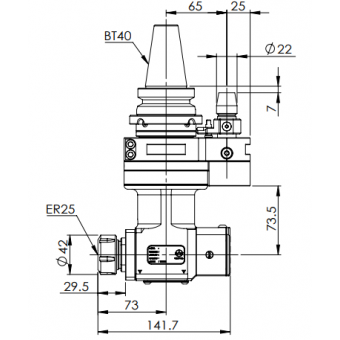

BT40-ER25 90° Aluminum Angle Head (AHM Type-Internal Coolant)
Run-out：0.002 mm
Material：Aerospace Aluminum Alloy
R.P.M.：Max. 6000 RPM
Torque：Max. 15 Nm
Drilling：Max. 12 mm
Tapping：Max. M8
Gear Ratio：1：1
Standard Accessory：Open End Wrench, ER Wrench, ER Nut
Output Rotation：Reverse to Input Rotation
Max. Coolant Bar：30 bar

◎6000 rpm high speed processing. Increases machining efficiency.
◎Compact and lighter body design is suitable for machines with light-load magazine and high speed
ATC system.
◎Can be automatic tool changed. Increases productivity.
◎Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
