◎ BT50-ADC6 Angle Head-Ultra Slim (AHL Type)◎ Run-out : 0.002 mm◎ Material : Alloy Steel◎ R.P.M. : Max. 6000 RPM◎ Torque : Max. 8 Nm◎ Drilling : Max. 6 mm◎ Tapping : Max. M5◎ Gear Ratio : 1:1◎ Standard Accessory : T Handle Hex. Wrench◎ Output Rotation : Reverse to Inp ...了解更多

AHL-BT50-C4.80/110 细小加长型角度头



  • 描述
  • IM_EXTRA_TAB_ADD1

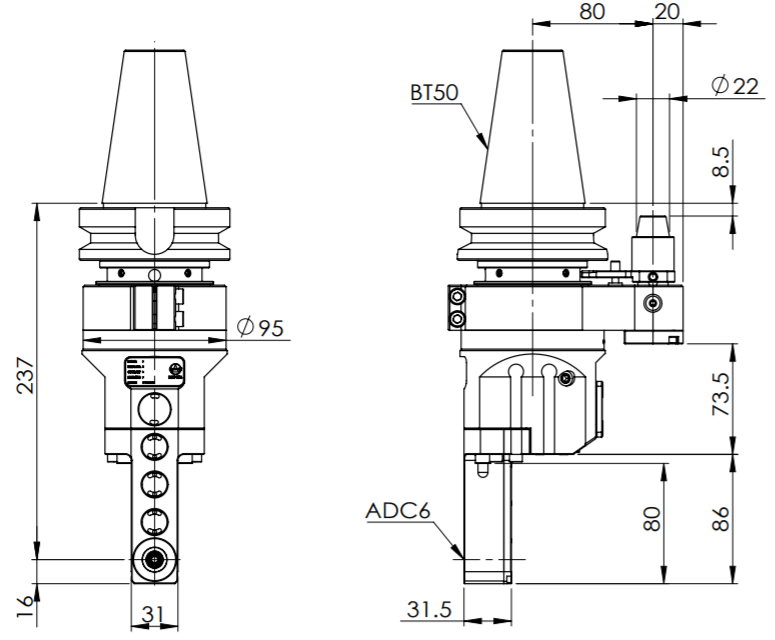

◎ BT50-ADC6 Angle Head-Ultra Slim (AHL Type)
◎ Run-out : 0.002 mm
◎ Material : Alloy Steel
◎ R.P.M. : Max. 6000 RPM
◎ Torque : Max. 8 Nm
◎ Drilling : Max. 6 mm
◎ Tapping : Max. M5
◎ Gear Ratio : 1:1
◎ Standard Accessory : T Handle Hex. Wrench
◎ Output Rotation : Reverse to Input Rotation

◎ Compact and longer body design is suitable for machining the deep-hole and deep-slot.
◎ Can be automatic tool changed. Increases productivity.
◎ Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
