◎ BT50-BT40 Flange-Mounted Angle Head (AHK Type)◎ Run-out:0.002 mm◎ Material:Ductile Cast Iron◎ R.P.M.:Max. 6000 RPM◎ Torque:Max. 100 Nm◎ Drilling:Max. 24 mm◎ Tapping:Max. M18◎ Gear Ratio:1:1◎ Standard Accessory:Open End Wrench, L Type Wrench◎ Output Rotation: ...了解更多

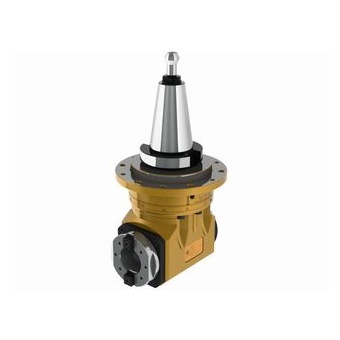

AHK-BT50-A1G 锁固式角度头



下载 PDF DWG
  • 描述
  • IM_EXTRA_TAB_ADD1

◎ BT50-BT40 Flange-Mounted Angle Head (AHK Type)
◎ Run-out:0.002 mm
◎ Material:Ductile Cast Iron
◎ R.P.M.:Max. 6000 RPM
◎ Torque:Max. 100 Nm
◎ Drilling:Max. 24 mm
◎ Tapping:Max. M18
◎ Gear Ratio:1:1
◎ Standard Accessory:Open End Wrench, L Type Wrench
◎ Output Rotation:Reverse to Input Rotation

◎ The output interface of Taper40 ensures wide-range application with various BT40 tool holders.
◎ Mount directly on the machine spindle surface. Rugged body construction for heavy duty cutting.
◎ Interchangeable among same taper machines by changing the mounting plate.
◎ Hardened precision spiral bevel gears ensure stable performance with long service life.
◎ Cutting direction can be adjusted from 0~360 degree.
