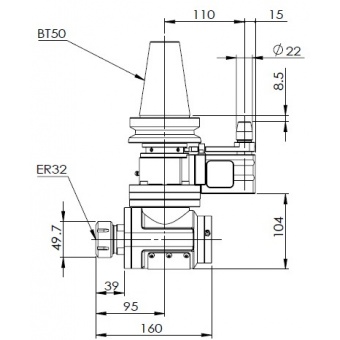

◎ BT50-ER32 90° Angle Head (AHA Type)
◎ Run-out：0.002 mm
◎ Material：Ductile Cast Iron
◎ R.P.M.：Max. 6000 RPM
◎ Torque : Max. 50 Nm
◎ Drilling : Max. 18 mm
◎ Tapping : Max. M14
◎ Gear Ratio：1：0.81
◎ Standard Accessory：Hook Spanner, ER Wrench, ER Nut
◎ Output Rotation : Reverse to Input Rotation

◎ The body is made of Ductile Cast Iron.
◎ High strength steel; stable machining.
◎ Wide selections of tool shanks. The design of ER32, ER40, and FA25.4 heads ensures various applications.
◎ Can be automatic tool changed. Increases productivity.
◎ Suitable for light and middle cutting.
