◎ CAT40-BT30 90° Angle Head (AHB Type)◎ Run-out：0.002 mm◎ Material：Ductile Cast Iron◎ R.P.M.：Max. 6000 RPM◎ Torque : Max. 70 Nm◎ Drilling : Max. 20 mm◎ Tapping : Max. M16◎ Gear Ratio：1：1◎ Standard Accessory：Hook Spanner, Open End Wrench, BT Nut◎ Output Rotat ...了解更多

AHB-CAT40-BT30 90度角度头



  • 描述
  • IM_EXTRA_TAB_ADD1

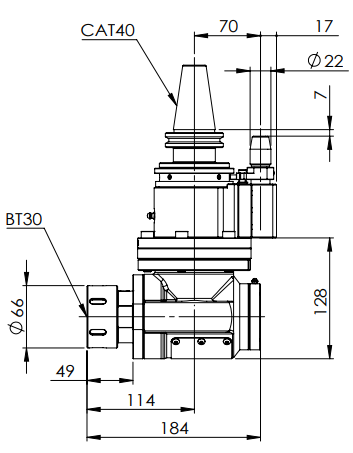

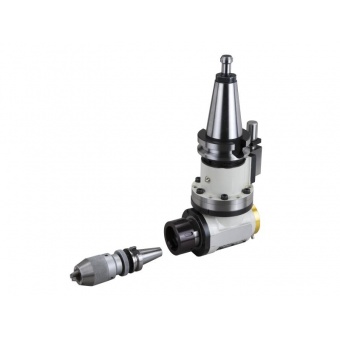

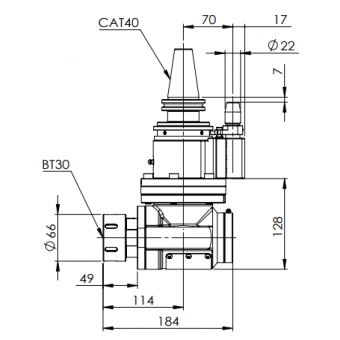

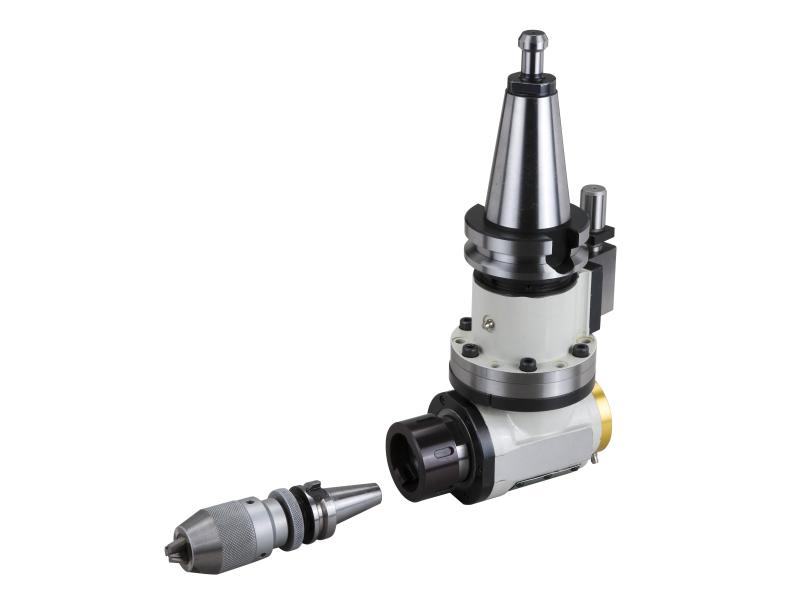

◎ CAT40-BT30 90° Angle Head (AHB Type)
◎ Run-out：0.002 mm
◎ Material：Ductile Cast Iron
◎ R.P.M.：Max. 6000 RPM
◎ Torque : Max. 70 Nm
◎ Drilling : Max. 20 mm
◎ Tapping : Max. M16
◎ Gear Ratio：1：1
◎ Standard Accessory：Hook Spanner, Open End Wrench, BT Nut
◎ Output Rotation : Reverse to Input Rotation

◎ The body is made of Ductile Cast Iron.
◎ High strength steel; stable machining.
◎ The output interface of BT30 ensures wide-range application with various BT30 tool holders.
