◎ CAT40-ER25 90° Angle Head-Longer (AHD Type)◎ Run-out:0.002 mm◎ Material:Ductile Cast Iron◎ R.P.M.:Max. 4000 RPM◎ Torque:Max. 25 Nm◎ Drilling : Max. 12 mm◎ Tapping : Max. M10◎ Gear Ratio:1:1◎ Standard Accessory:Hook Spanner, ER Wrench, ER Nut◎ Output Rot ...了解更多

AHD-CAT40-A3 90度角度头



  • 描述
  • IM_EXTRA_TAB_ADD1

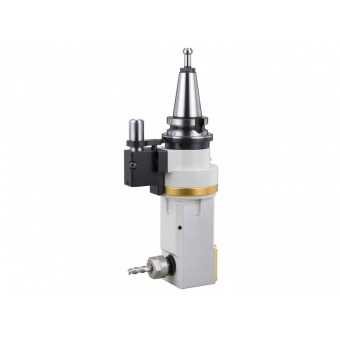

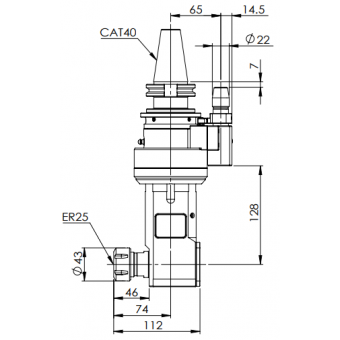

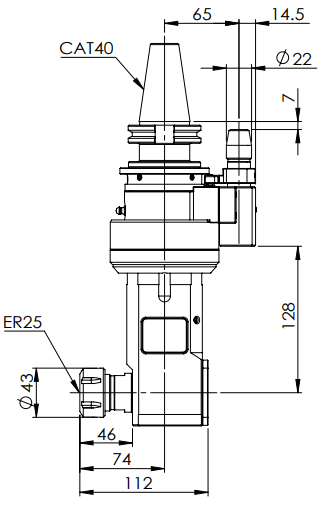

◎ CAT40-ER25 90° Angle Head-Longer (AHD Type)
◎ Run-out:0.002 mm
◎ Material:Ductile Cast Iron
◎ R.P.M.:Max. 4000 RPM
◎ Torque:Max. 25 Nm
◎ Drilling : Max. 12 mm
◎ Tapping : Max. M10
◎ Gear Ratio:1:1
◎ Standard Accessory:Hook Spanner, ER Wrench, ER Nut
◎ Output Rotation:Reverse to Input Rotation

◎ The body is made of Ductile Cast Iron.
◎ High strength steel; stable machining.
◎ The AHD series is suitable for firm and fast face milling.
