AHL-CAT40-B2.65G 新型万向角度头



  • 描述
  • IM_EXTRA_TAB_ADD1

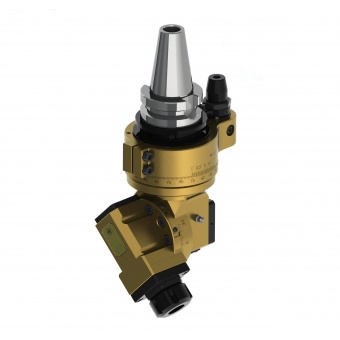

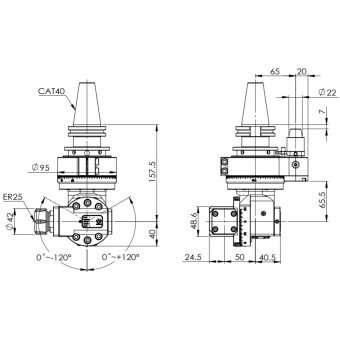

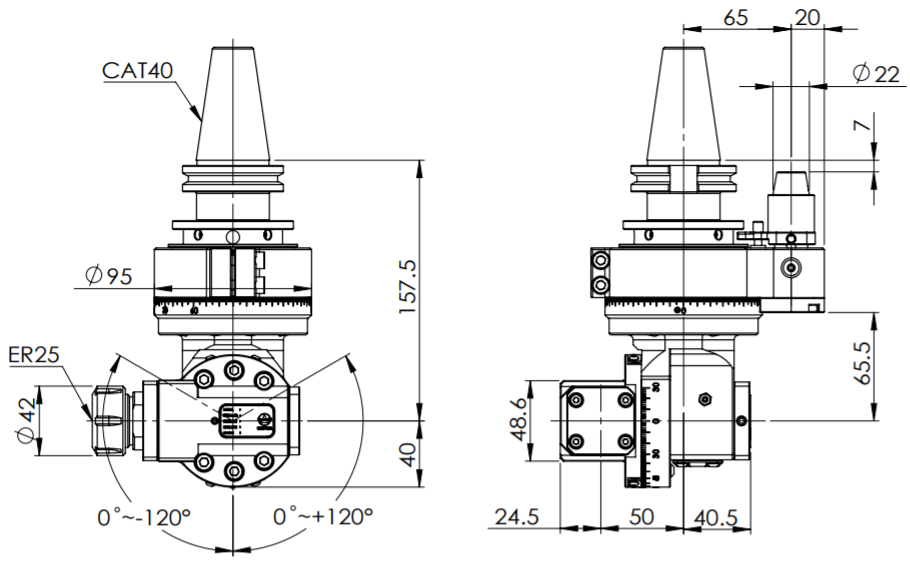

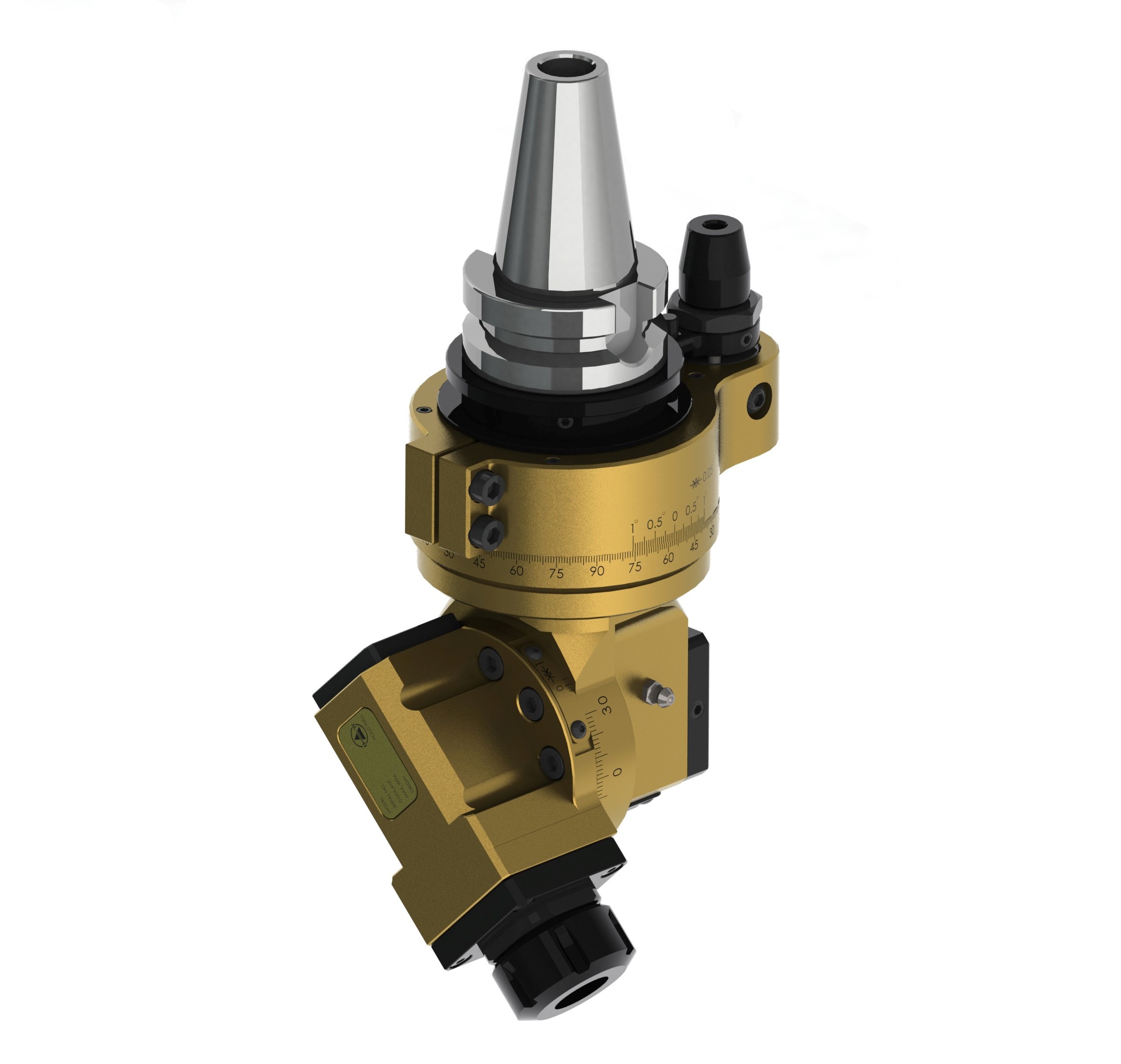

◎ CAT40-ER25 Universal Angle Head (AHL Type)
◎ Run-out : 0.002 mm
◎ Material : Aerospace Alu. Alloy / Ductile Cast Iron / Alloy Steel
◎ R.P.M. : Max. 6000 RPM
◎ Torque : Max. 25 Nm
◎ Drilling : Max. 14 mm
◎ Tapping : Max. M10
◎ Gear Ratio : 1 : 1
◎ Standard Accessory : Open End Wrench, ER Wrench, ER Nut
◎ Output Rotation : Same as Input Rotation

◎  Cutting angle can be set from 0°~ ±120°for various applications.
◎  Compact design provides extra strength, oil-proof, dust-proof, and duration.
◎  Can be automatic tool changed. Increases productivity.
◎  Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
