◎ CAT50-CAT40 Aluminum Offset Flange-Mounted Angle Head (AHK Type)◎ Run-out:0.002 mm◎ Material:Aerospace Alu. Alloy & Ductile Cast Iron◎ R.P.M.:Max. 4000 RPM◎ Torque:Max. 60 Nm◎ Drilling:Max. 20 mm◎ Tapping:Max. M16◎ Gear Ratio:1:1◎ Standard Accessory:Tool-Lo ...了解更多

AHK-CAT50-D1 铝合金内缩锁固式角度头



下载 PDF DWG
  • 描述
  • IM_EXTRA_TAB_ADD1

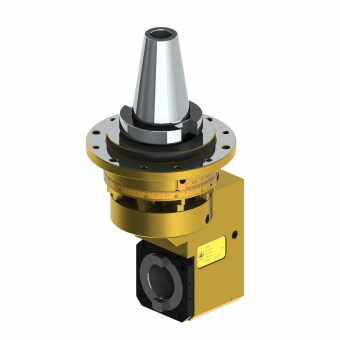

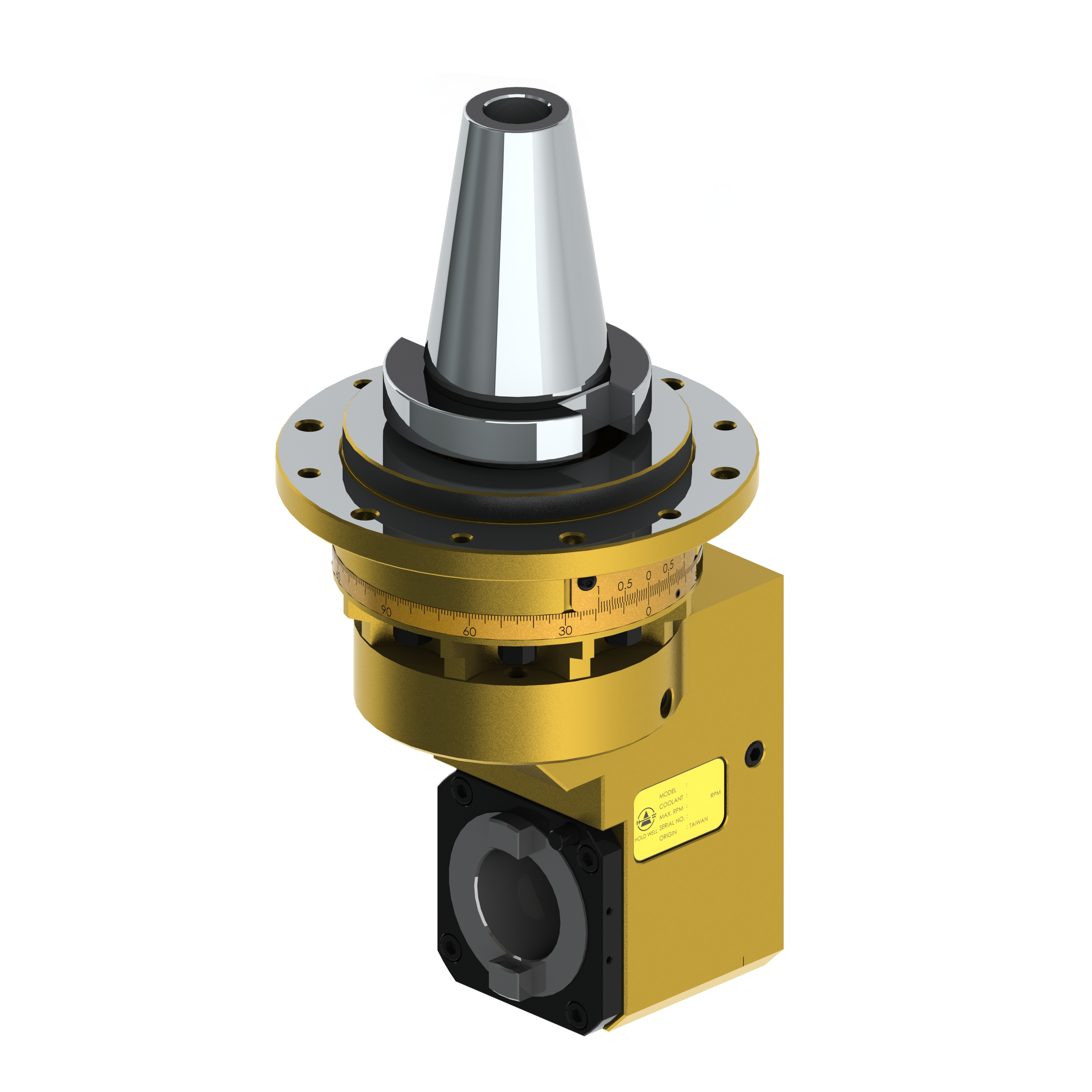

◎ CAT50-CAT40 Aluminum Offset Flange-Mounted Angle Head (AHK Type)
◎ Run-out:0.002 mm
◎ Material:Aerospace Alu. Alloy & Ductile Cast Iron
◎ R.P.M.:Max. 4000 RPM
◎ Torque:Max. 60 Nm
◎ Drilling:Max. 20 mm
◎ Tapping:Max. M16
◎ Gear Ratio:1:1
◎ Standard Accessory:Tool-Locking Plate, L Type Wrench
◎ Output Rotation:Same as Input Rotation

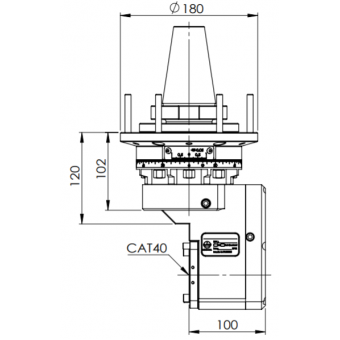

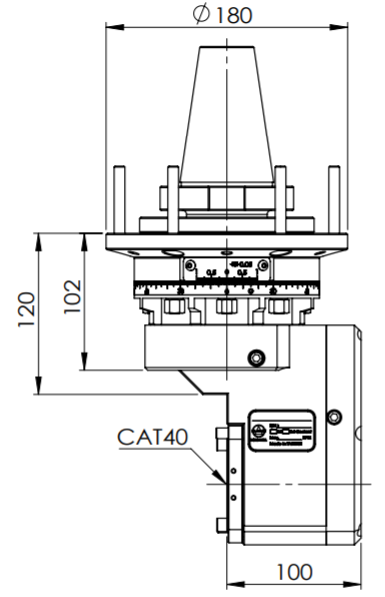

◎ The output interface of Taper40 ensures wider-angle application with various CAT40 tool holders.
◎ Mount directly on the machine spindle surface. Rugged body construction for heavy duty cutting.
◎ Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
◎ Offset design ensures compact body and largely eliminates interference.
◎ Offset design eliminates the protrusion of tools and enhances working rigidity.
◎ Special tool-locking design ensures easier too engagement and release.
