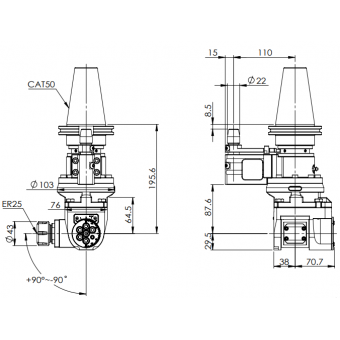

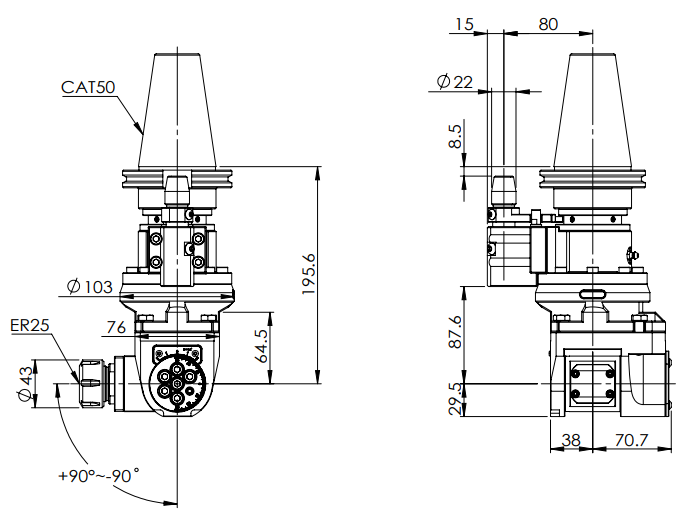

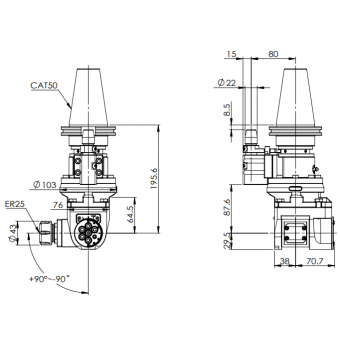

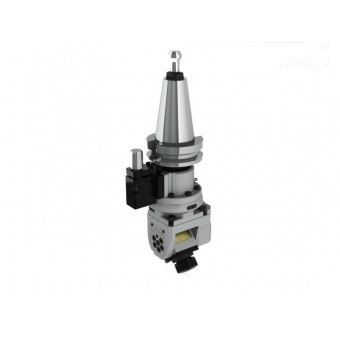

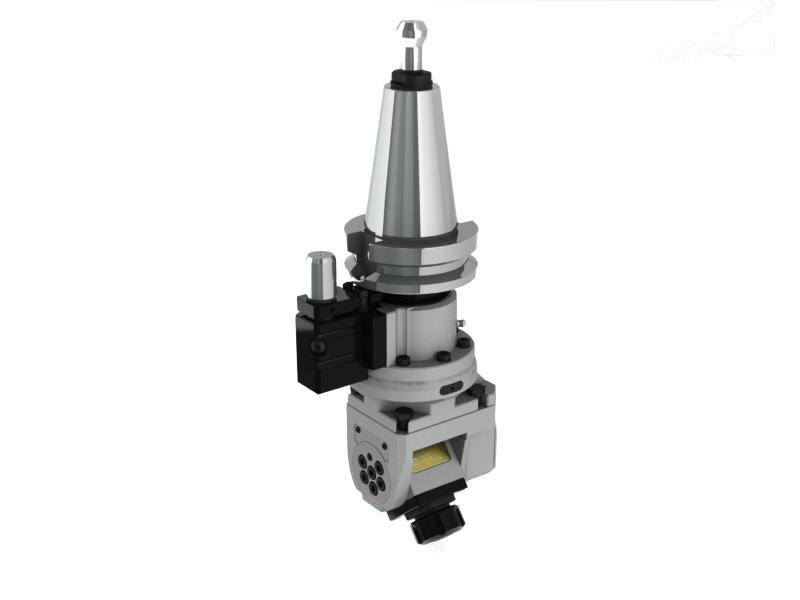

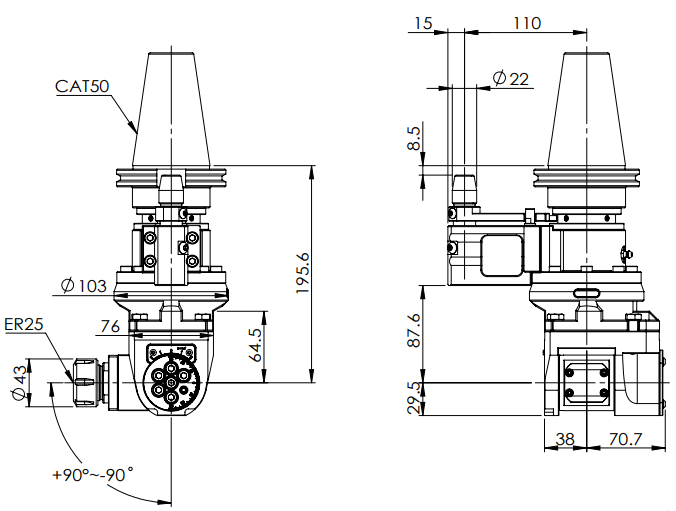

◎ CAT50-ER25 Universal Angle Head (AHG Type)
◎ Run-out：0.002 mm
◎ Material：Alloy Steel & Ductile Cast Iron
◎ R.P.M.：Max. 4000 RPM
◎ Torque：Max. 20 Nm
◎ Drilling：Max. 14mm
◎ Tapping：Max. M10
◎ Gear Ratio：1：1
◎ Standard Accessory：Open End Wrench, ER Wrench, ER Nut
◎ Output Rotation：Reverse to Input Rotation

◎ Cutting angle can be set from 0 to +-90 degree for various applications.
◎ Compact design provides extra strength, oil-proof, dust-proof, and duration.
◎ Can be automatic tool changed. Increases productivity.
