◎ CAT50-ER40 90°Angle Head (AHB Type)◎ Run-out:0.002 mm◎ Material:Ductile Cast Iron◎ R.P.M.:Max. 6000 RPM◎ Torque : Max. 70 Nm◎ Drilling : Max. 20 mm◎ Tapping : Max. M16◎ Gear Ratio:1:1◎ Standard Accessory:Hook Spanner, ER Wrench, ER Nut◎ Output Rotation : ...了解更多
  • 描述
  • IM_EXTRA_TAB_ADD1

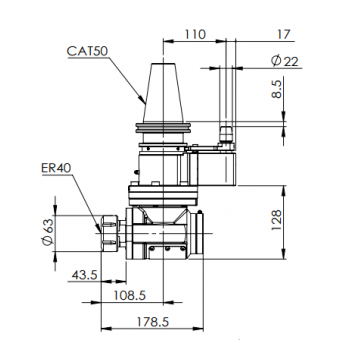

◎ CAT50-ER40 90°Angle Head (AHB Type)
◎ Run-out:0.002 mm
◎ Material:Ductile Cast Iron
◎ R.P.M.:Max. 6000 RPM
◎ Torque : Max. 70 Nm
◎ Drilling : Max. 20 mm
◎ Tapping : Max. M16
◎ Gear Ratio:1:1
◎ Standard Accessory:Hook Spanner, ER Wrench, ER Nut
◎ Output Rotation : Reverse to Input Rotation

◎ The body is made of Ductile Cast Iron.
◎ High strength steel; stable machining.
◎ Can be automatic tool changed. Increases productivity.
