◎ HSK63-ER16 Light Angle Head (AHL Type)◎ Run-out : 0.002 mm◎ Material : Alloy Steel◎ R.P.M. : Max. 8000 RPM◎ Torque : Max. 12 Nm◎ Drilling: Max. 10 mm◎ Tapping: Max. M8◎ Gear Ratio : 1:1◎ Standard Accessory: M Type Wrench, Pin Wrench, ER Nut◎ Output R ...了解更多

AHL-HSK63-A1.65G 轻量型90度角度头



  • 描述
  • IM_EXTRA_TAB_ADD1

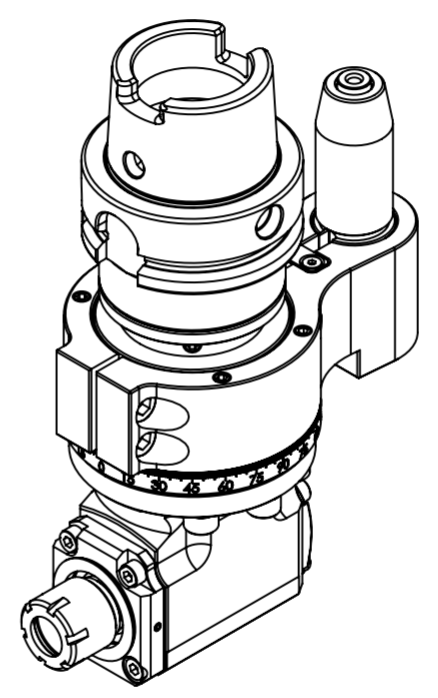

◎ HSK63-ER16 Light Angle Head (AHL Type)
◎ Run-out : 0.002 mm
◎ Material : Alloy Steel
◎ R.P.M. : Max. 8000 RPM
◎ Torque : Max. 12 Nm
◎ Drilling: Max. 10 mm
◎ Tapping: Max. M8
◎ Gear Ratio : 1:1
◎ Standard Accessory: M Type Wrench, Pin Wrench, ER Nut
◎ Output Rotation : Reverse to Input Rotation

◎  Compact and lighter body design is suitable for drilling, milling, and tapping application.
◎  Can be automatic tool changed. Increases productivity.
◎  Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
