◎ HSK63-ER20 45° Angle Head (AHD Type)◎ Run-out:0.002 mm◎ Material:Ductile Cast Iron◎ R.P.M.:Max. 4000 RPM◎ Torque:Max. 15 Nm◎ Drilling:Max. 10 mm◎ Tapping:Max. M8◎ Gear Ratio:1:1◎ Standard Accessory:Hook Spanner, End Wrench, ER Nut◎ Output Rotation ...了解更多

AHD-HSK63-B1 45度角度头



  • 描述
  • IM_EXTRA_TAB_ADD1

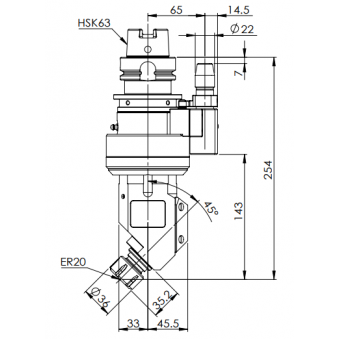

◎ HSK63-ER20 45° Angle Head (AHD Type)
◎ Run-out:0.002 mm
◎ Material:Ductile Cast Iron
◎ R.P.M.:Max. 4000 RPM
◎ Torque:Max. 15 Nm
◎ Drilling:Max. 10 mm
◎ Tapping:Max. M8
◎ Gear Ratio:1:1
◎ Standard Accessory:Hook Spanner, End Wrench, ER Nut
◎ Output Rotation:Reverse to Input Rotation

◎ The 45 degree design ensures 45 degree drilling, milling and curved surface processing.
