◎ HSK63-ER25 90° Aluminum Angle Head (AHM Type)◎ Run-out:0.002 mm◎ Material:Aerospace Aluminum Alloy◎ R.P.M.:Max. 6000 RPM◎ Torque:Max. 15 Nm◎ Drilling:Max. 12 mm◎ Tapping:Max. M8◎ Gear Ratio:1:1◎ Standard Accessory:Open End Wrench, ER Wrench, ER Nut◎ ...了解更多

AHM-HSK63-A04.180G 90度铝合金角度头



  • 描述
  • IM_EXTRA_TAB_ADD1

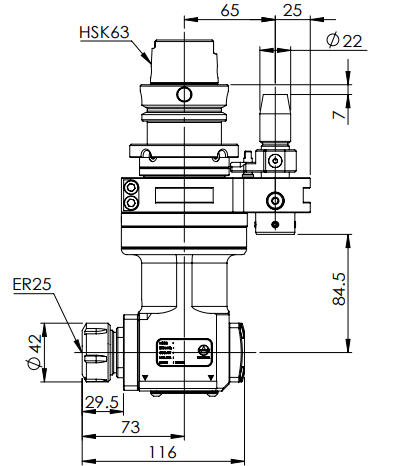

◎ HSK63-ER25 90° Aluminum Angle Head (AHM Type)
◎ Run-out:0.002 mm
◎ Material:Aerospace Aluminum Alloy
◎ R.P.M.:Max. 6000 RPM
◎ Torque:Max. 15 Nm
◎ Drilling:Max. 12 mm
◎ Tapping:Max. M8
◎ Gear Ratio:1:1
◎ Standard Accessory:Open End Wrench, ER Wrench, ER Nut
◎ Output Rotation:Reverse to Input Rotation

◎6000 rpm high speed processing. Increases machining efficiency.
◎Compact and lighter body design is suitable for machines with light-load magazine and high speed
ATC system.
◎Can be automatic tool changed. Increases productivity.
◎Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
