◎ SK40-FA25.4 90° Angle Head (AHA Type)◎ Run-out:0.002 mm◎ Material:Ductile Cast Iron◎ R.P.M.:Max. 6000 RPM◎ Torque : Max. 50 Nm◎ Gear Ratio:1:0.81◎ Standard Accessory:Open End Wrench◎ Output Rotation : Reverse to Input Rotation ...了解更多

AHA-SK40-FA25.4 90度角度头



  • 描述
  • IM_EXTRA_TAB_ADD1

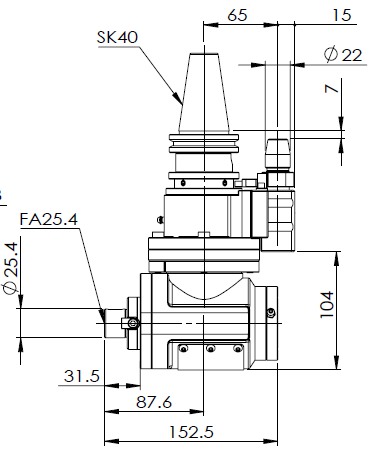

◎ SK40-FA25.4 90° Angle Head (AHA Type)
◎ Run-out:0.002 mm
◎ Material:Ductile Cast Iron
◎ R.P.M.:Max. 6000 RPM
◎ Torque : Max. 50 Nm
◎ Gear Ratio:1:0.81
◎ Standard Accessory:Open End Wrench
◎ Output Rotation : Reverse to Input Rotation

◎ The body is made of Ductile Cast Iron.
◎ High strength steel; stable machining.
◎ Wide selections of tool shanks. The design of ER32, ER40, and FA25.4 heads ensures various applications.
◎ Suitable for light and middle cutting.
