◎ SK50-ER25 Universal Angle Head (AHL Type)◎ Run-out : 0.002 mm◎ Material : Aerospace Alu. Alloy / Ductile Cast Iron / Alloy Steel◎ R.P.M. : Max. 6000 RPM◎ Torque : Max. 25 Nm◎ Drilling : Max. 14 mm◎ Tapping : Max. M10◎ Gear Ratio : 1 : 1◎ Standard Accessory : Open End  ...了解更多

AHL-SK50-B2.80/110G 万向角度头



  • 描述
  • IM_EXTRA_TAB_ADD1

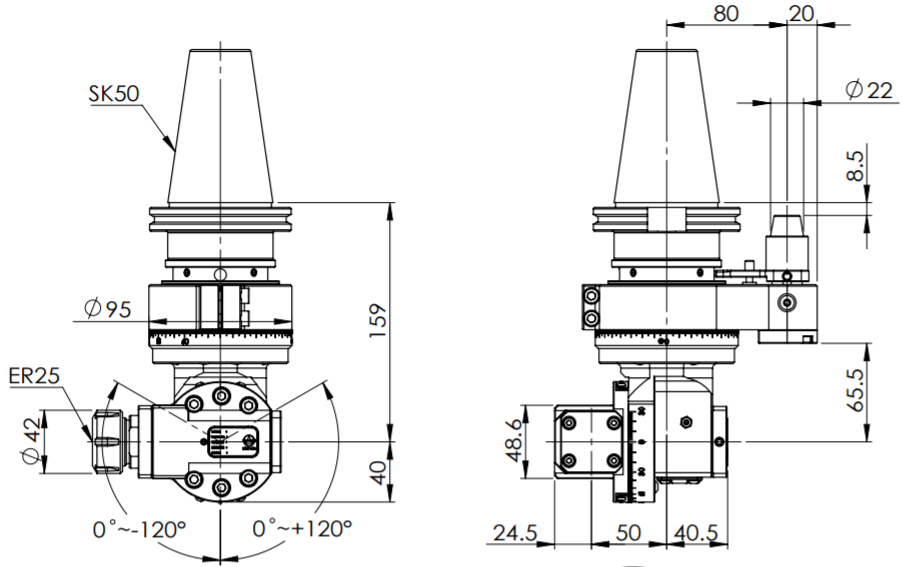

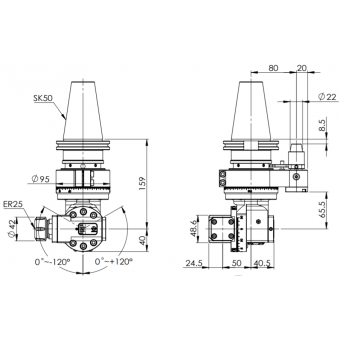

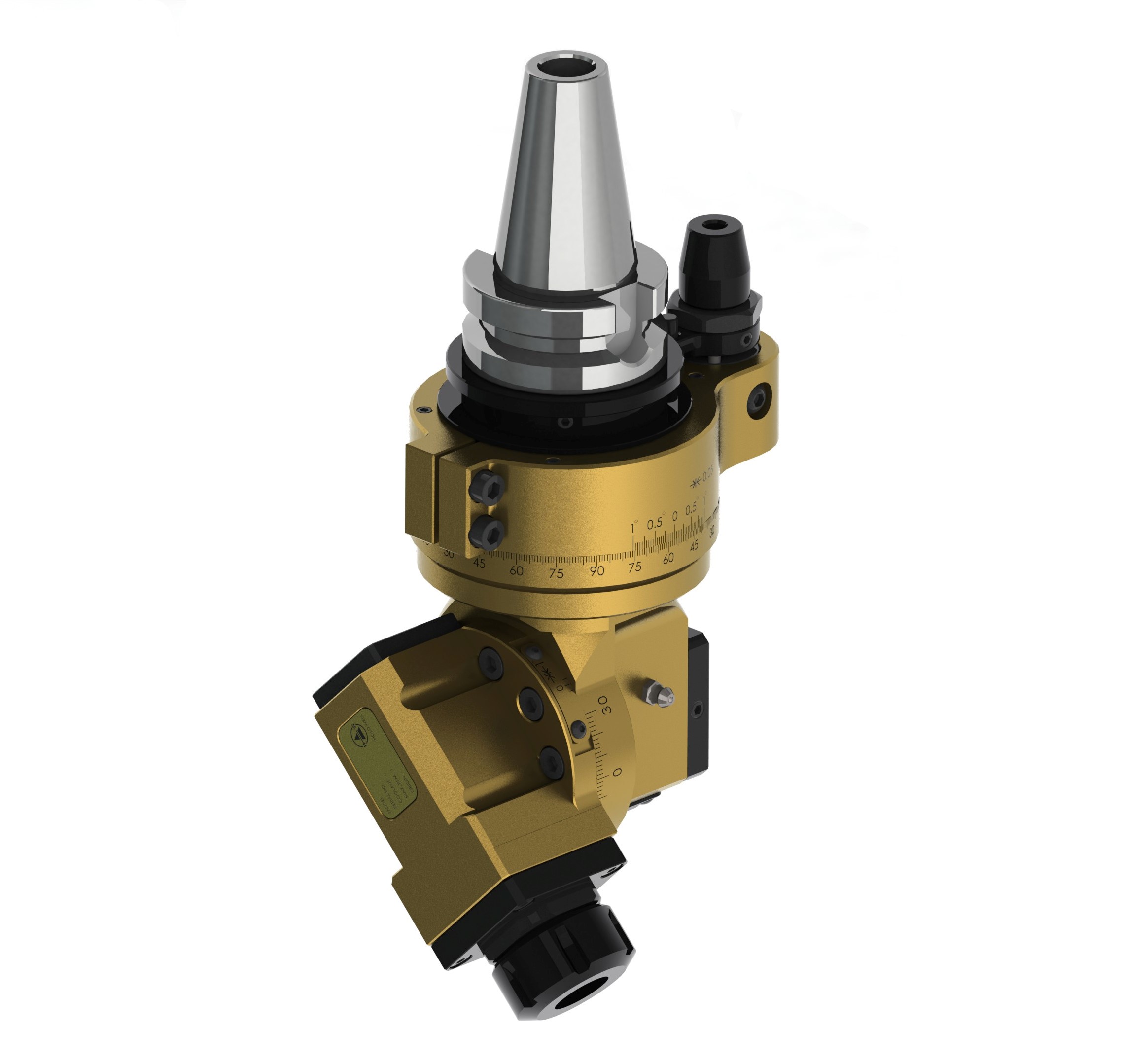

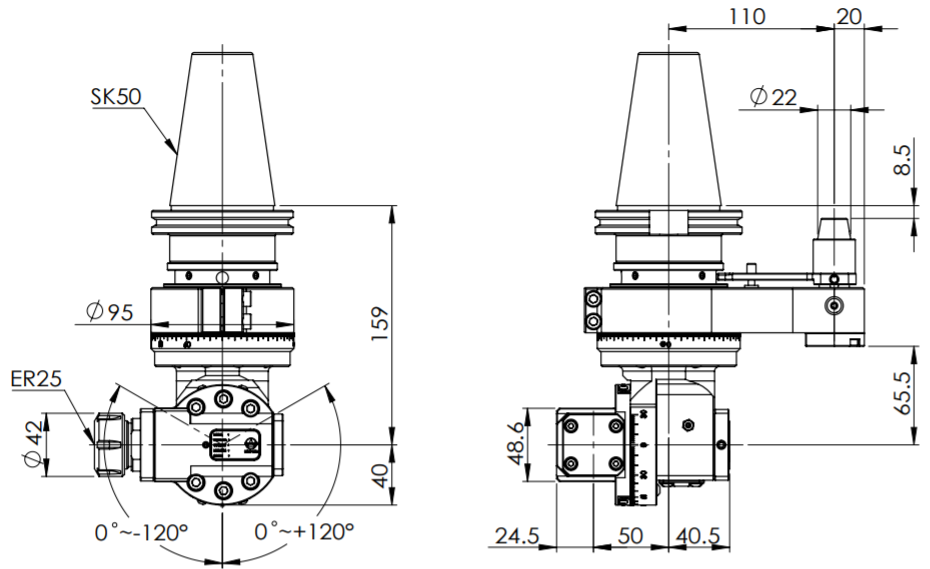

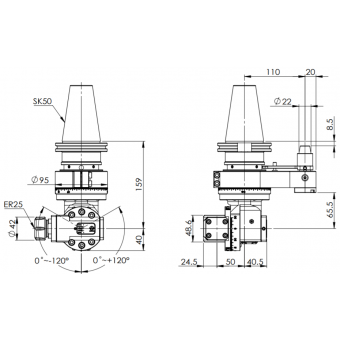

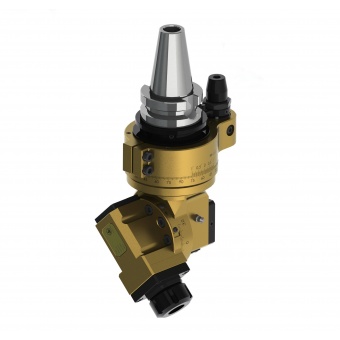

◎ SK50-ER25 Universal Angle Head (AHL Type)
◎ Run-out : 0.002 mm
◎ Material : Aerospace Alu. Alloy / Ductile Cast Iron / Alloy Steel
◎ R.P.M. : Max. 6000 RPM
◎ Torque : Max. 25 Nm
◎ Drilling : Max. 14 mm
◎ Tapping : Max. M10
◎ Gear Ratio : 1 : 1
◎ Standard Accessory : Open End Wrench, ER Wrench, ER Nut
◎ Output Rotation : Same as Input Rotation

◎  Cutting angle can be set from 0°~ ±120°for various applications.
◎  Compact design provides extra strength, oil-proof, dust-proof, and duration.
◎  Can be automatic tool changed. Increases productivity.
◎  Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
