◎ SK50-FA25.4 90° Angle Head (AHC Type)◎ Run-out:0.002 mm◎ Material:Ductile Cast Iron◎ R.P.M.:Max. 6000 RPM◎ Torque : Max. 70 Nm◎ Gear Ratio:1:1◎ Standard Accessory:Open End Wrench◎ Output Rotation : Reverse to Input Rotation ...了解更多
  • 描述
  • IM_EXTRA_TAB_ADD1

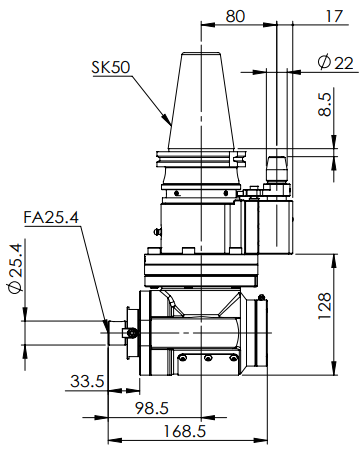

◎ SK50-FA25.4 90° Angle Head (AHC Type)
◎ Run-out:0.002 mm
◎ Material:Ductile Cast Iron
◎ R.P.M.:Max. 6000 RPM
◎ Torque : Max. 70 Nm
◎ Gear Ratio:1:1
◎ Standard Accessory:Open End Wrench
◎ Output Rotation : Reverse to Input Rotation

◎ The body is made of Ductile Cast Iron.
◎ High strength steel; stable machining.
◎ The AHC series is suitable for firm and fast face milling.
◎ Can be automatic tool changed. Increases productivity.
