◎ SK50-HSK63 Multi-Block Angle Head-HSK (AHK Type)◎ Run-out:0.002 mm◎ Material:Alloy Steel◎ R.P.M.:Max. 6000 RPM◎ Torque:Max. 100 Nm◎ Drilling:Max. 24 mm◎ Tapping:Max. M18◎ Gear Ratio:1:1◎ Standard Accessory:Open End Wrench, L Type Wrench◎ Output Rotation:Reve ...了解更多

AHK-SK50-B2 拉刀式角度头



  • 描述
  • IM_EXTRA_TAB_ADD1

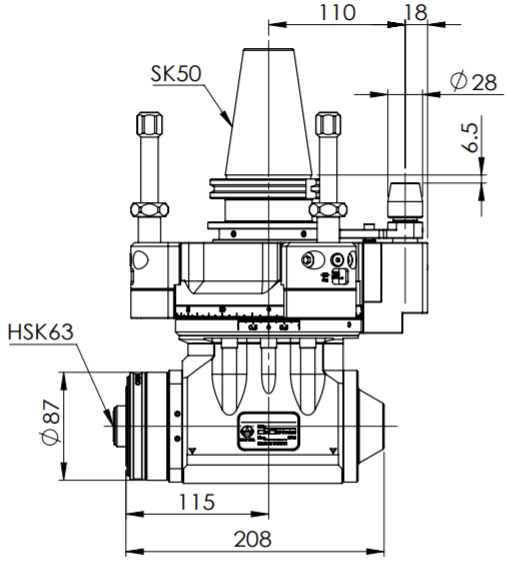

◎ SK50-HSK63 Multi-Block Angle Head-HSK (AHK Type)
◎ Run-out:0.002 mm
◎ Material:Alloy Steel
◎ R.P.M.:Max. 6000 RPM
◎ Torque:Max. 100 Nm
◎ Drilling:Max. 24 mm
◎ Tapping:Max. M18
◎ Gear Ratio:1:1
◎ Standard Accessory:Open End Wrench, L Type Wrench
◎ Output Rotation:Reverse to Input Rotation

◎ The output interface of HSK63 ensures wide-range application with various HSK63 tool holders.
◎ Rugged Alloy Steel body construction with compact design.
◎ Hardened precision spiral bevel gears ensure stable performance with long service life.
◎ Cutting direction can be adjusted from 0 ~ 360 degree.
◎ Multi-block support system improves working rigidity and stability.
◎ The automatic disengagement and engagement of Angle Head can be easily operated on the base of table and improve efficiency.
