◎ SK50-SK40 Flange-Mounted Angle Head (VTC)(AHK Type)◎ Run-out:0.002 mm◎ Material:Alloy Steel◎ R.P.M.:Max. 6000 RPM◎ Torque:Max. 100 Nm◎ Drilling:Max. 24 mm◎ Tapping:Max. M18◎ Gear Ratio:1:1◎ Standard Accessory:Open End Wrench, L Type Wrench◎ Output Rotation:R ...了解更多

AHK-SK50-C1 法兰型自动换刀角度头



下载 PDF DWG
  • 描述
  • IM_EXTRA_TAB_ADD1

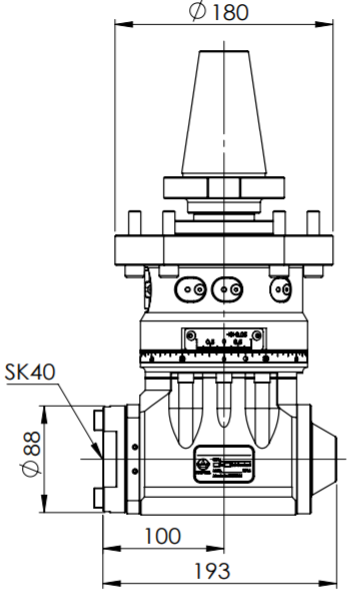

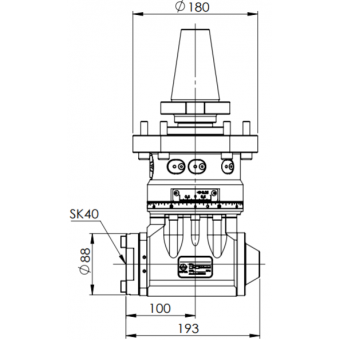

◎ SK50-SK40 Flange-Mounted Angle Head (VTC)(AHK Type)
◎ Run-out:0.002 mm
◎ Material:Alloy Steel
◎ R.P.M.:Max. 6000 RPM
◎ Torque:Max. 100 Nm
◎ Drilling:Max. 24 mm
◎ Tapping:Max. M18
◎ Gear Ratio:1:1
◎ Standard Accessory:Open End Wrench, L Type Wrench
◎ Output Rotation:Reverse to Input Rotation

◎ Can be applied on Vertical Turning Center, Plano Milling Machine and various machines with Adapter Plate.
◎ Built-in spindle positioning system. The flexible design of connection part which is suitable for various magazines makes the ATC application possible.
◎ Can be connected to tooth-shaped Flange Disc or any shape of Machine Spindle surface to reach Max. rigidity.
◎ Hardened precision spiral bevel gears ensure stable performance with long service life.
◎ Cutting direction can be adjusted from 0 ~ 360 degree.
