◎ VDI40-1809-TER20 Radial Tapping Collet Driven Tool Holder ◎ Tapping Collet Driven ◎ Tool Holder 65mm ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 1809. ◎ ER Collet is according to DIN 6499. ◎ For left hand and right hand turret. ...了解更多

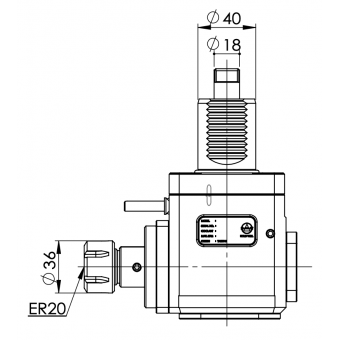

THB-B15.65-40A VDI40-1809-TER20 径向动力刀座(ER弹性攻牙)



下载 DWG STP PDF
  • 描述

◎ VDI40-1809-TER20 Radial Tapping Collet Driven Tool Holder

◎ Tapping Collet Driven

◎ Tool Holder 65mm

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 1809.

◎ ER Collet is according to DIN 6499.

◎ For left hand and right hand turret.
