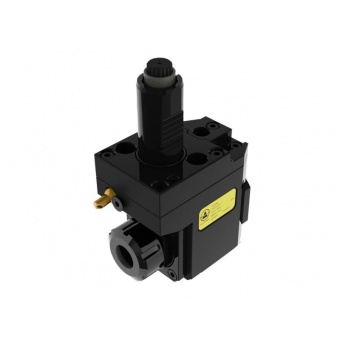

◎ VDI30-5480-ER25 Radial Offset Driven Tool Holder 70mm ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 5480. ◎ ER Collet is according to DIN6499. ◎ For left hand and right hand turret. ◎ Further option : 6000 RPM ...了解更多

THB-D04.70-30B VDI30-5480-ER25 径向内缩动力刀座



下载 DWG STP PDF
  • 描述

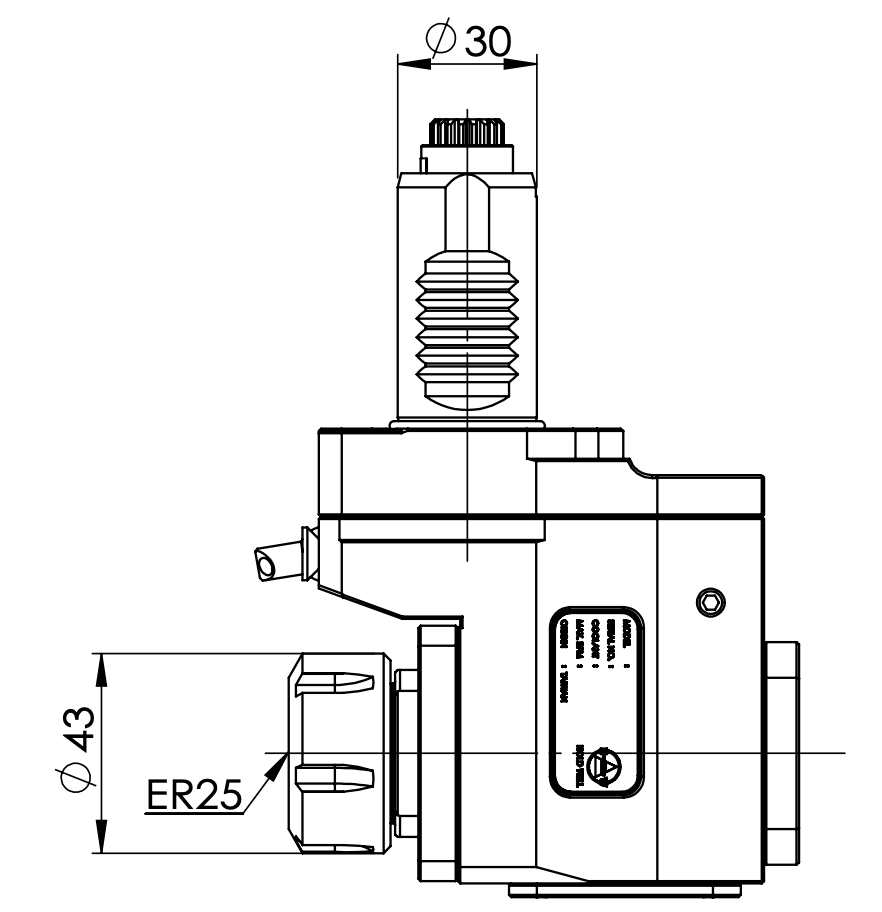

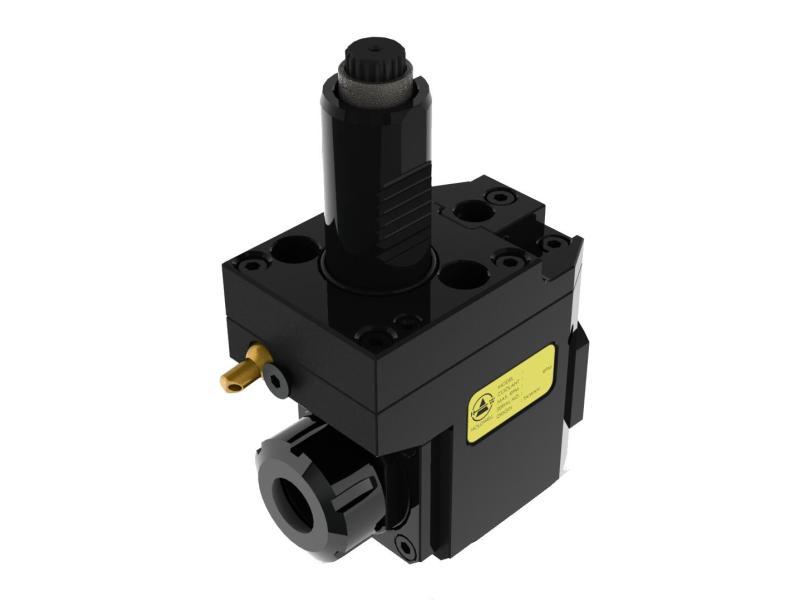

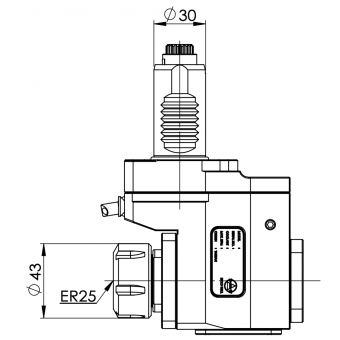

◎ VDI30-5480-ER25 Radial Offset Driven Tool Holder 70mm

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 5480.

◎ ER Collet is according to DIN6499.

◎ For left hand and right hand turret.

◎ Further option : 6000 RPM
