◎ VDI40-5480-ER25 B Axial Swivel Driven Tool Holder 85mm ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 5480. ◎ ER Collet is according to DIN6499. ◎ For left hand and right hand turret. ◎ Cutting angle can be set from +90 to -90 degree ...了解更多

THB-E04.85-40B VDI40-5480-ER25 B 万向动力刀座



下载 DWG STP PDF
  • 描述

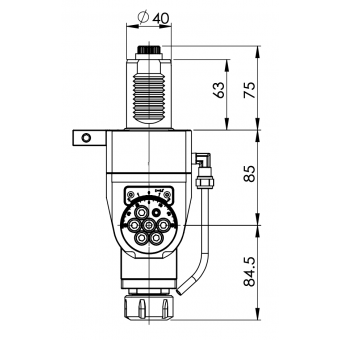

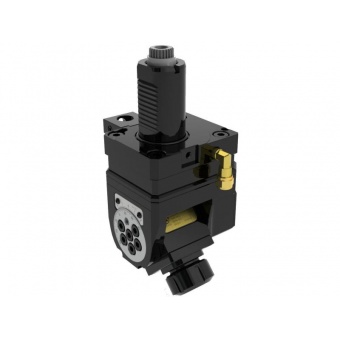

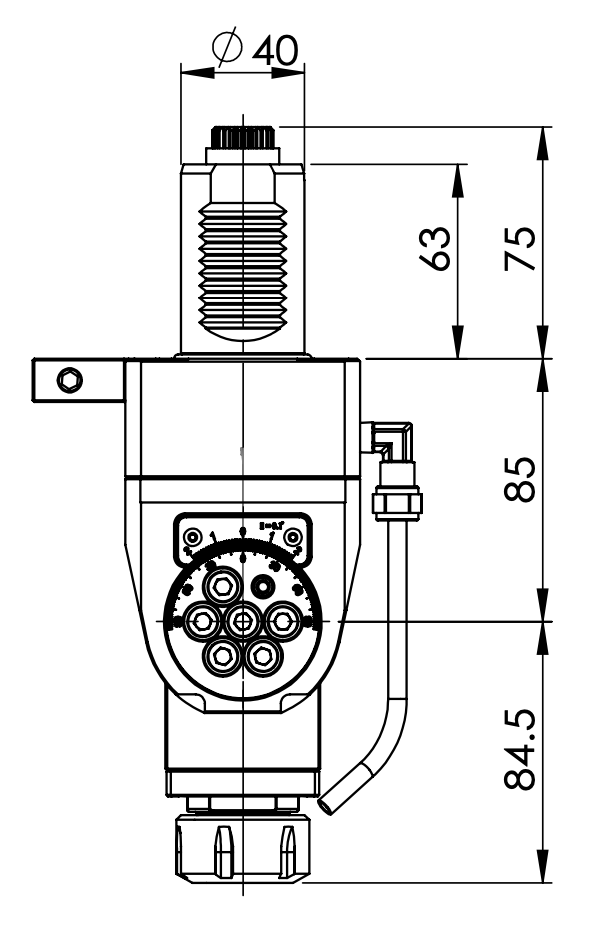

◎ VDI40-5480-ER25 B Axial Swivel Driven Tool Holder 85mm

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 5480.

◎ ER Collet is according to DIN6499.

◎ For left hand and right hand turret.

◎ Cutting angle can be set from +90 to -90 degree for various application.

◎ Optional Accessories : Hook Spanner.
