◎ VDI40-5480 Axial Swivel Gear Hobber Driven Tool Holder ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 5480. ◎ For left hand and right hand turret. ◎ Cutting angle can be set from +20 to -20 degree for various applications. ◎ Suitable ...了解更多

THB-R29.115-40B VDI40-5480 轴向摆动滚齿动力刀座



下载 DWG STP PDF
  • 描述

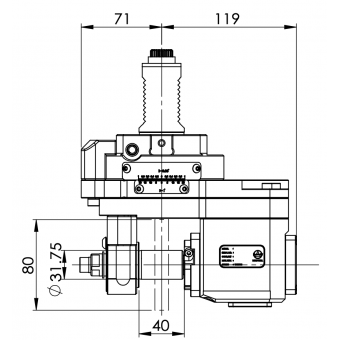

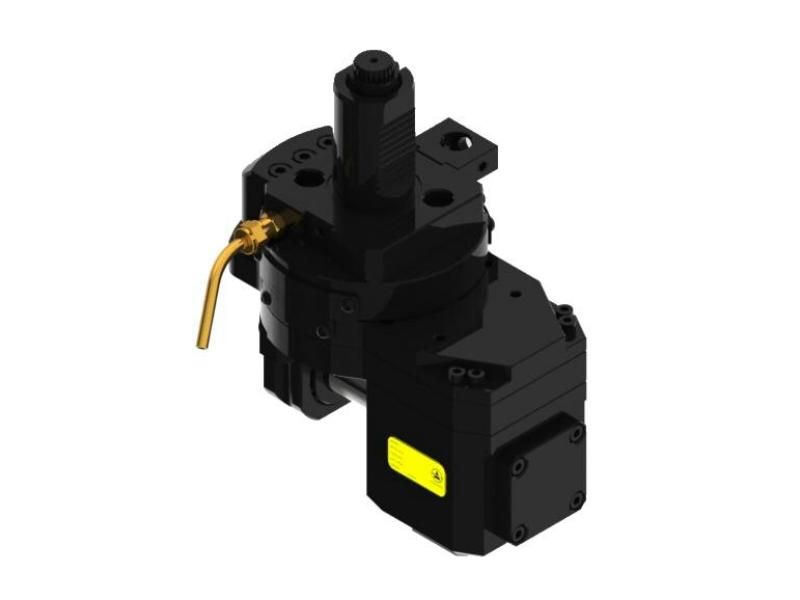

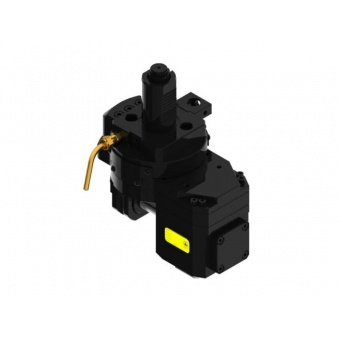

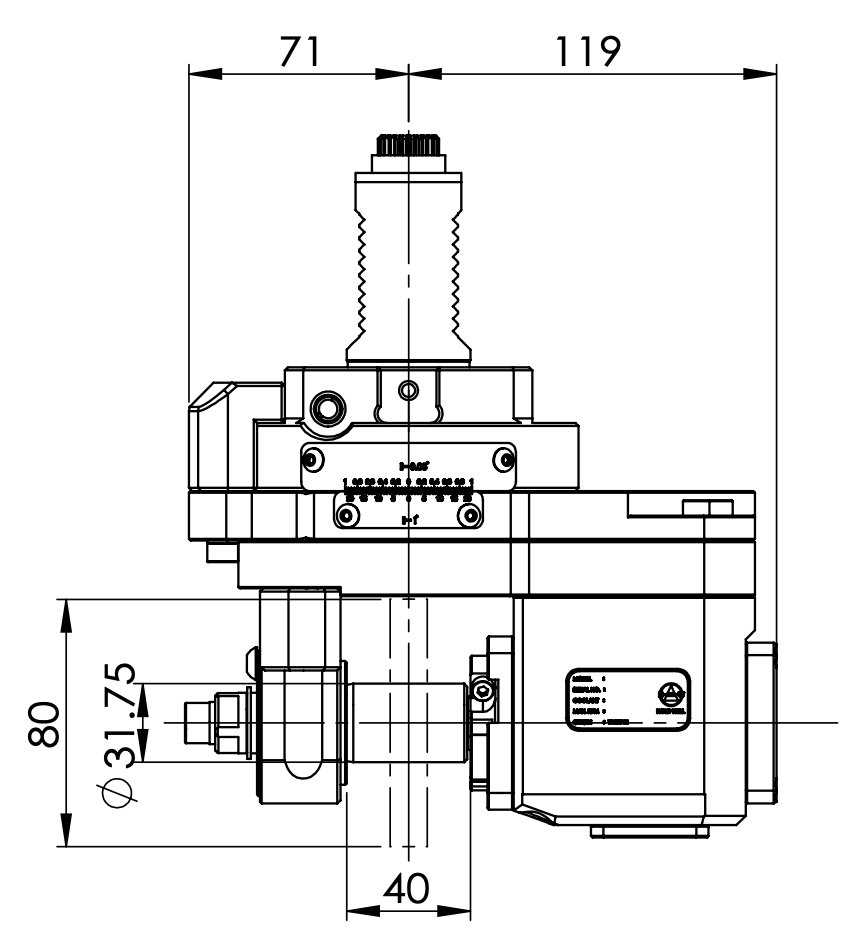

VDI40-5480 Axial Swivel Gear Hobber Driven Tool Holder

Tool Holder is produced in accordance with DIN 69880.

Driven Coupling is according to DIN 5480.

For left hand and right hand turret.

Cutting angle can be set from +20 to -20 degree for various applications.

Suitable for machining Spur Gear and Bevel Gear.
