◎ VDI50-5480-ER40 Radial Driven Tool Holder92mm ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 5480. ◎ ER Collet is according to DIN6499. ◎ For left hand and right hand turret. ◎ Further option : 6000 RPM ...了解更多

THB-B06.92-50B VDI50-5480-ER40 径向动力刀座



下载 DWG STP PDF
  • 描述

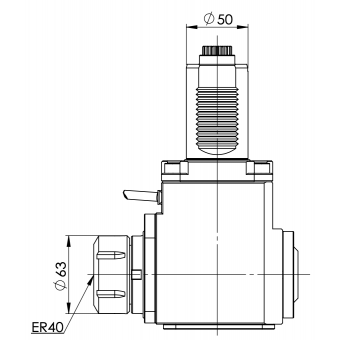

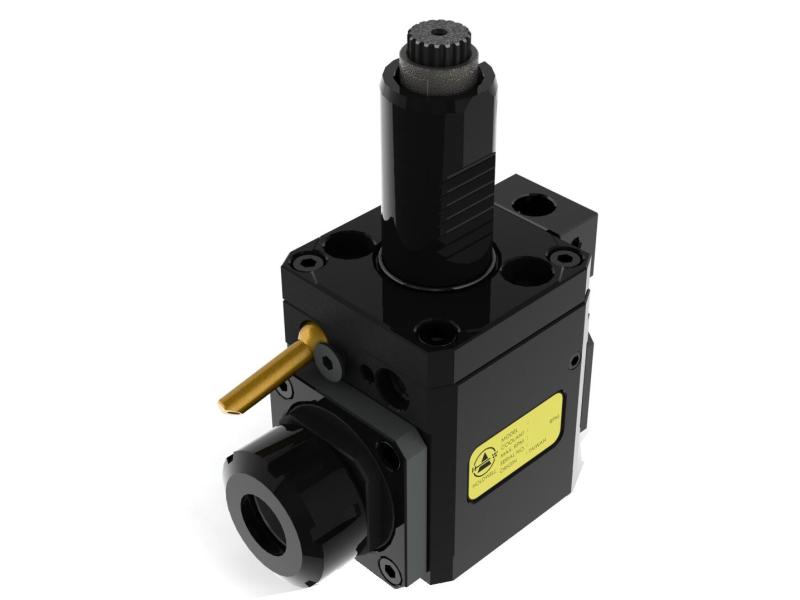

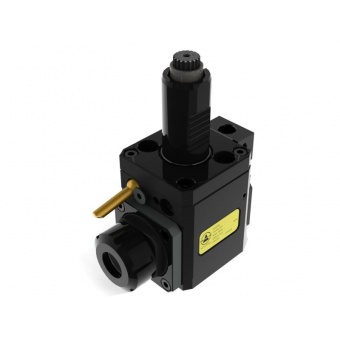

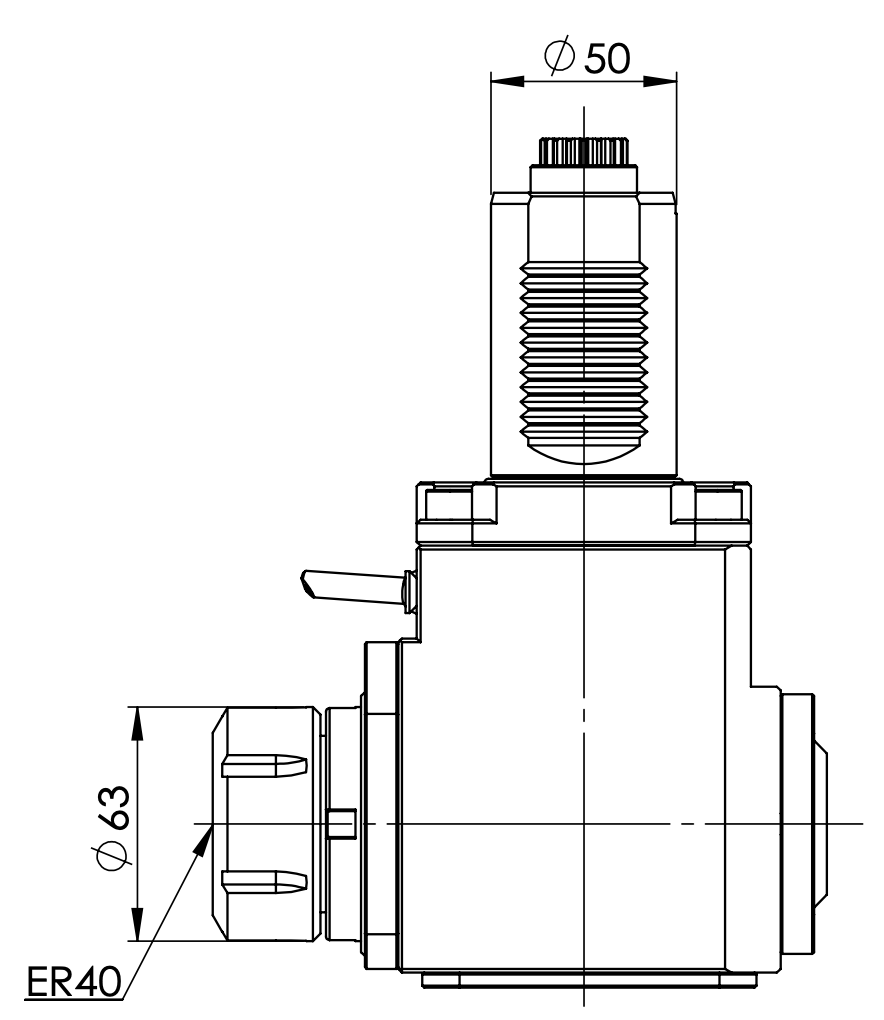

◎ VDI50-5480-ER40 Radial Driven Tool Holder92mm

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 5480.

◎ ER Collet is according to DIN6499.

◎ For left hand and right hand turret.

◎ Further option : 6000 RPM
