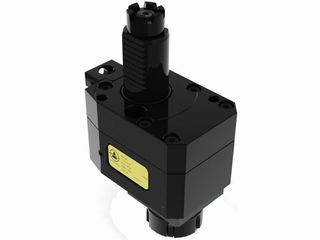

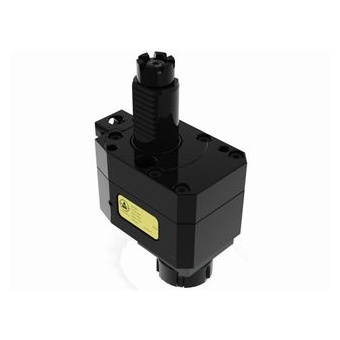

◎ VDI30-MT-ER25 Axial Offset Driven Tool Holder◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.◎ Further option : 6000 RPM

THB-C04.29-30D VDI30-MT-ER25 轴向偏心动力刀座



下载 DWG STP PDF
  • 描述
  • IM_EXTRA_TAB_ADD1
  • 规格

◎ VDI30-MT-ER25 Axial Offset Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM

◎ Gear Ratio：1：1
◎ R.P.M.：Max. 5,000 RPM

Model No. B D E F G I J K L M N O P N.W. (KG)
THB-C04.29-30D 64 30 57 58.5 48 ER25(2~16) 42 12 45 62 99.5 73 29 3

Unit:mm
