External Coolant
Gear Ratio: 1:0.33
R.P.M. Max.: 4000 RPM
Rotation: Same as input rotation
● Tool Holder is produced in accordance with DIN 69880.
● Driven Coupling is according to SPUR MT TOEM.
● For left hand and right hand turret.
● Suitable for machining Spur Gear and Bevel Gear.

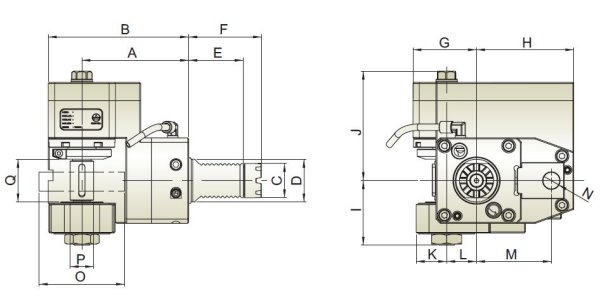

| Model No. | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | N.W.(KG) |
| THB-J30.100-40DR0.33 | 100 | 131.5 | 32 | 40 | 51 | 68 | 59.5 | 91 | 60.5 | 102.5 | 28.5 | 28 | 70 | 15.5 | 80 | 16/22/27/19.05/25.4/31.75 | 40 | 12.75 |
Unit:mm
