◎ VDI50-MT Radial Swivel Gear Hobber Tool Holder◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ For left hand and right hand turret.◎ Cutting angle can be set from +20 to -20 degree for various applications.◎ Suitable for machining ...了解更多

THB-T29.100-50D VDI50-MT 径向摆动滚齿动力刀座



  • 描述
  • IM_EXTRA_TAB_ADD1
  • 规格

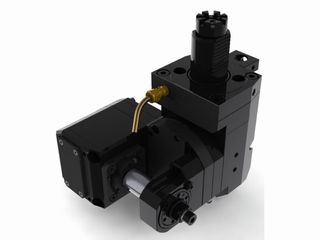

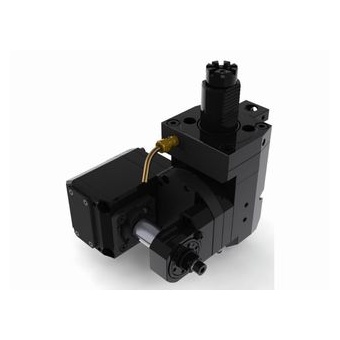

◎ VDI50-MT Radial Swivel Gear Hobber Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ For left hand and right hand turret.
◎ Cutting angle can be set from +20 to -20 degree for various applications.
◎ Suitable for machining Spur Gear and Bevel Gear.

◎ Gear Ratio：2.76：1
◎ Input R.P.M.：Max. 4,000 RPM

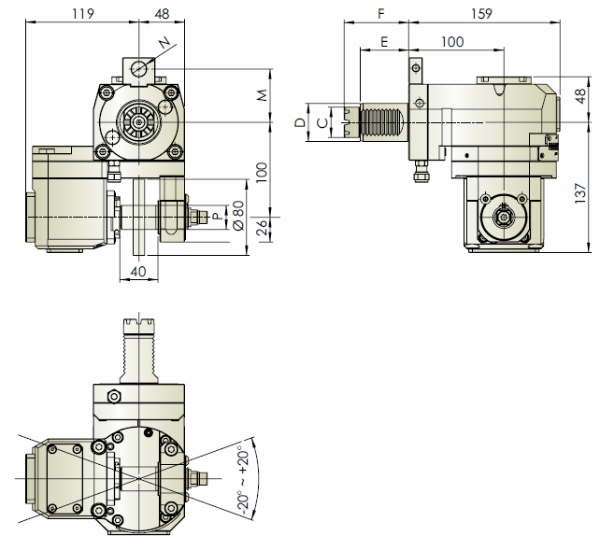

Model No. C D E F M N P N.W. (KG)
THB-T29.100-50D 40 50 68 92 70/88 18 22/25.4/27/31.75 12.8

Unit:mm
